Triple Screw Extruder
Detail

Corotating twin screw extruder has best dispersing and compounding for all the materials.  Modular design can make the machine changed according to the materials and the process technology easily. It’s possible for one machine reach the extensive performance and special purpose in many place.






Details:

TSE series included screw diameter from ∮16mm-∮160mm. Different processing demand can be satisfied by our different screw speed and different torque output.


Special design for the frame with special pats makes the machine installation easily and smoothly when running.


Hydraulic screen changer, non-stop screen changer, hinge die are available.


Various feeding system normally are volumetric feeder, gravimetric feeder can be used for more precise.

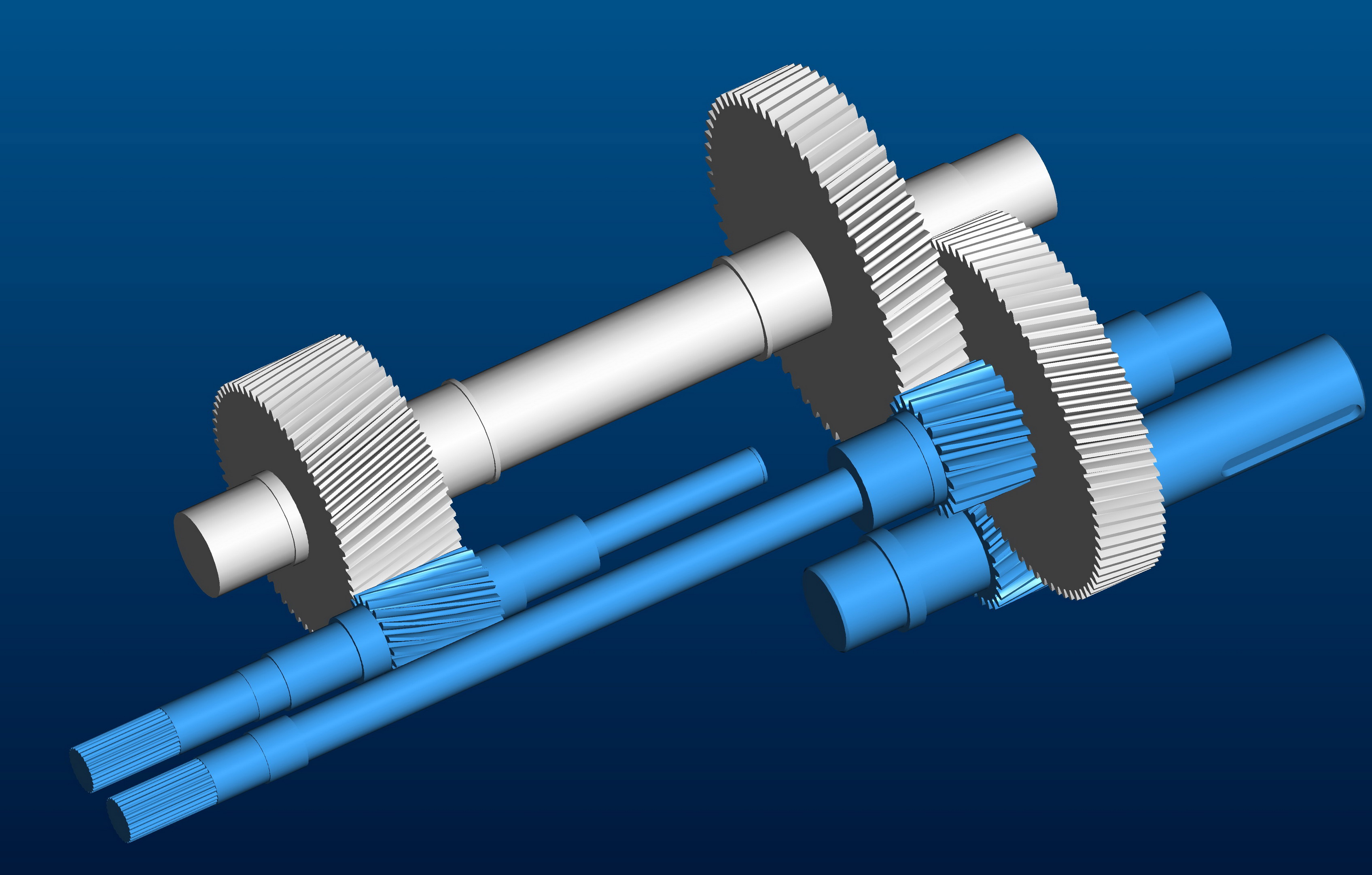

Power transmission system:


Newly strengthen design, Speed reducing and torque disturbing integrated.

High torque gearbox from Italy used for the machine can improve the capacity of the machine and the safety torque make the machine long life.


Screw elements and barrel:

  • Barrel: feeding, close, venting and vacuum, side feeding barrel

  • Screw element: conveying, blending, dispersing, stretching, pressuring element.

  • Screw design:  Do/Di: 1.27, 1.55, 1.75

  • Fully intermeshed modular design make the screw elements have excellent self-wiping and can be interchanged with each other easily.

  • CNC machine guarantee the screw elements and the barrel more precise.

  • Experienced screw profile design and advanced software technology can be satisfied forthe processing of all kinds of the materials.



Electric control system:


1、 Meter and button control

We use meter and the button control the machine directly. It has low fault, simple and visual and it’s the first selection for all the customers.


2、HMC operation control

PLC, PCC system equipped with color touch screen are used in kind of control system. All the meter are connected with the main line, so it can be control the total line automatic and test on line.


Lab equipment:

Model

Diameter

(mm)

L/D


Speed

(Rpm)

Power

(kw)

Torque

(N.m)

Capacity

(kg/h)

TSE- 16

15.6

32-48

600

1.1

4.8

0.5-1.5

TSE-20

22

32-48

600

3

23

1-2


Standard TSE series:

Model

Diameter

(mm)

L/D


Speed

(Rpm)

Power

(kw)

Torque

(N.m)

Capacity

(kg/h)

TSE-30B

30

32-56

600

11

85

5-30

TSE-35B

35.6

32-56

600

18.5

140

20-55

TSE-40B

41

32-56

600

30

225

50-100

TSE-50B

50.5

32-56

500

45

408

120-180

TSE-52B

51.4

32-56

600

55

415

120-200

TSE-60B

59.5

32-56

500-600

75-90

675

200-300

TSE-65B

62.4

32-56

500-600

75-90

675

200-350

TSE-75B

71

32-56

500-600

110-132

1005

300-700

TSE-95

93

32-56

500-600

250-315

2365

500-1200

TSE-135

133

32-48

400-500

550

6190

1650-2500



High torque TE-D series:

Model

Diameter

(mm)

L/D


Speed

(Rpm)

Power

(kw)

Torque

(N.m)

Capacity

(kg/h)

TSE-40D

41

32-56

600

45

340

80 - 150

TSE-52D

51.4

32-56

600

75-90

675

180-250

TSE-65D

62.4

32-56

600

110-132

1200

300-700

TSE-75D

71

32-56

600

220-250

1875

450-850

TSE-95D

93

32-56

500

450

4050

1000-1500

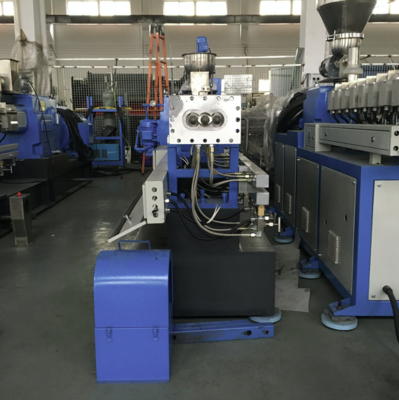

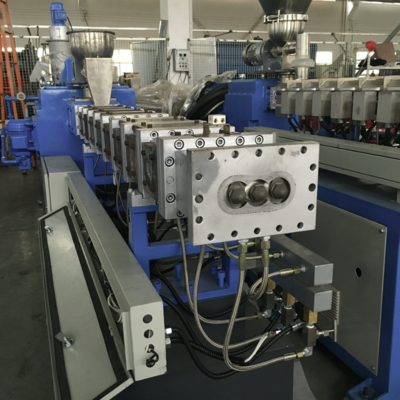

We also offer triple screw extruder TRSE-43, 53, 67, increasing Do/Di design screw.
